Product Detail

CPU
AMD AM4 Socket 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen Processors

Chipset
AMD X570

Memory
3rd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
2nd Gen AMD Ryzen Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 at 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 at 60 Hz

Multi-GPU Support
3rd and 2nd Gen AMD Ryzen Processors
AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors
Supports AMD CrossFireX Technology

Expansion Slots
3rd Gen AMD Ryzen Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1

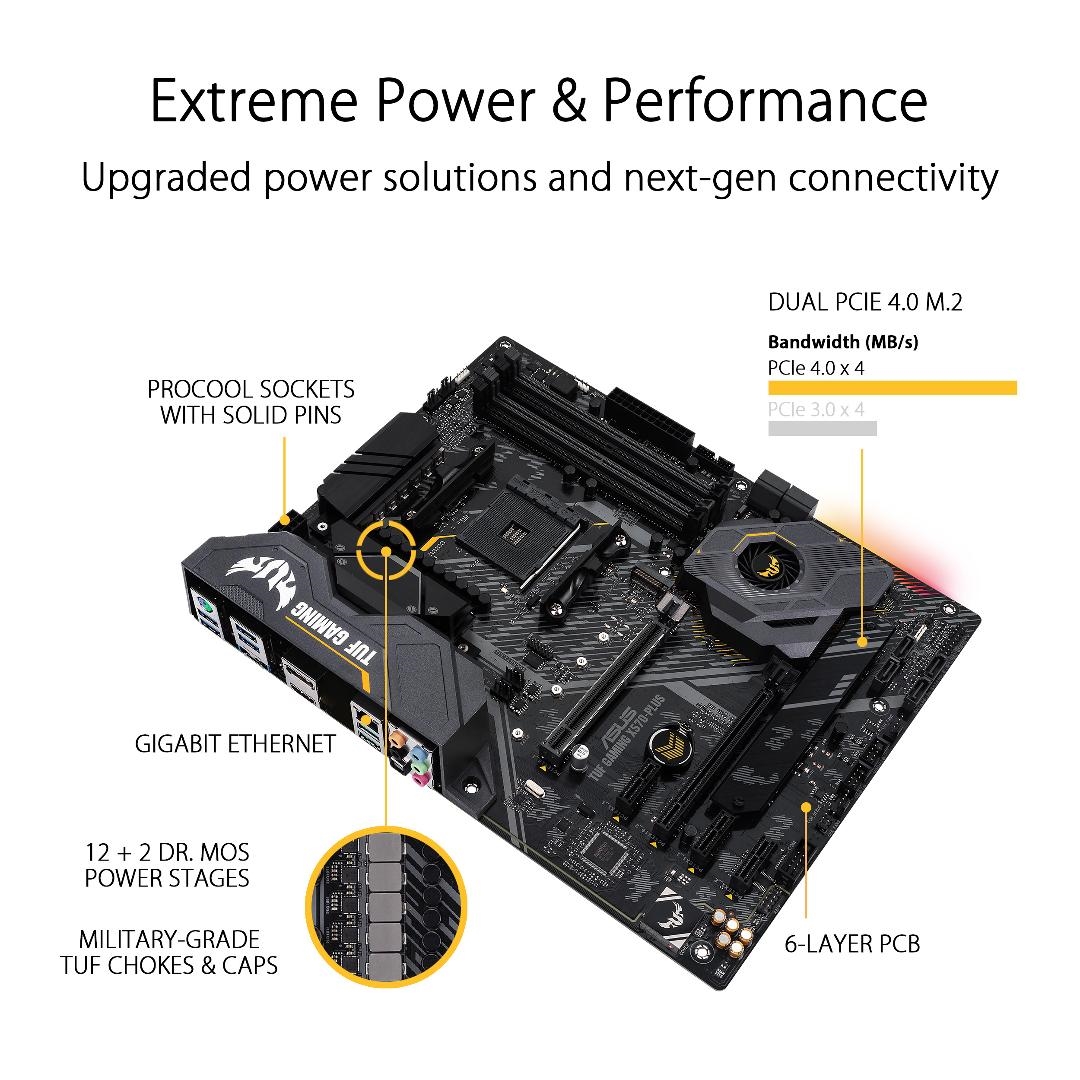

Storage
3rd Gen AMD Ryzen Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10

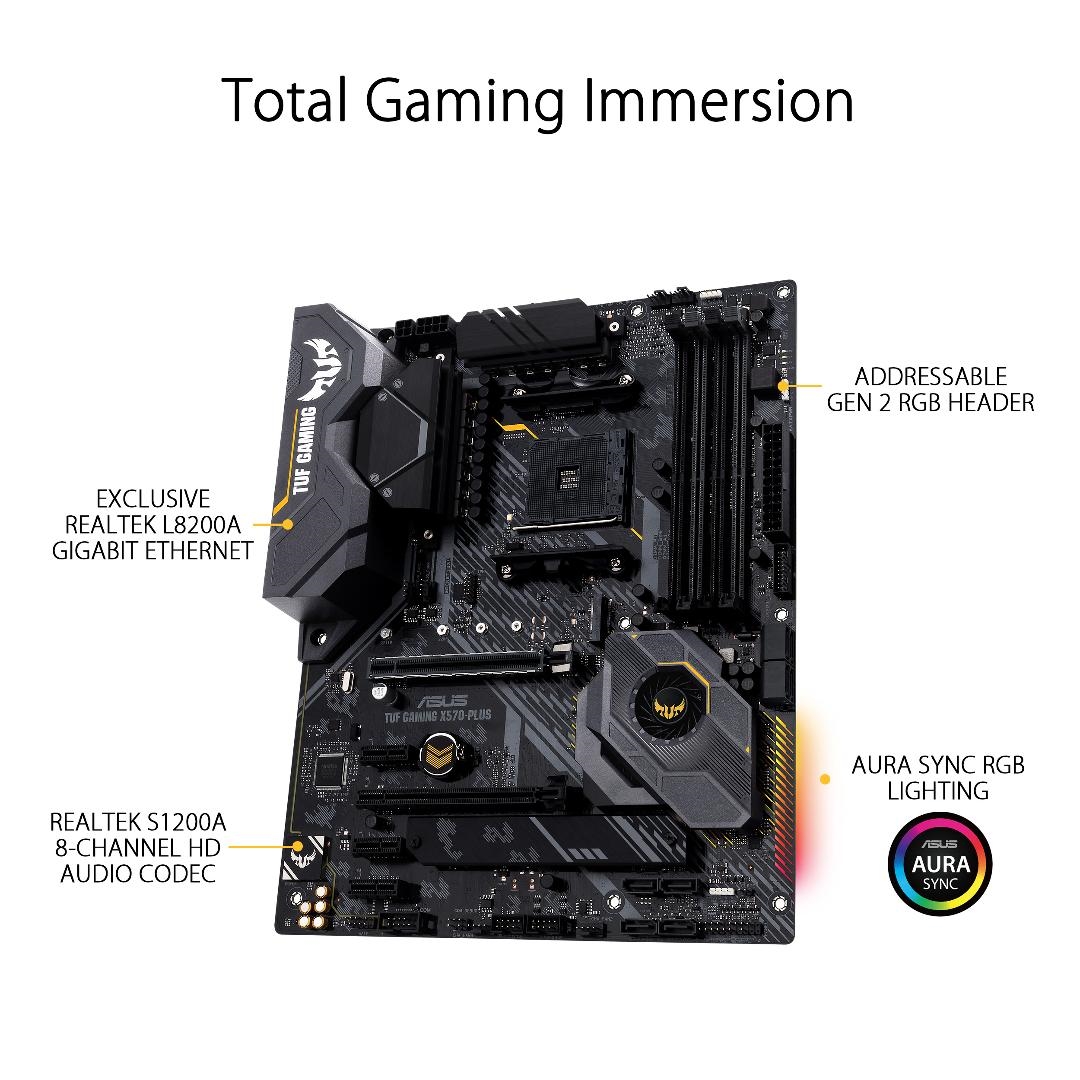

LAN
Realtek L8200A
ASUS Turbo LAN Utility
TUF LANGuard

Audio
Realtek ALC S1200A 8-Channel High Definition Audio CODEC
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

USB Ports
3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
AMD X570 chipset :
3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s) (4 at mid-board)

Special Features
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS DIGI+ VRM: Precision control for stable power
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger

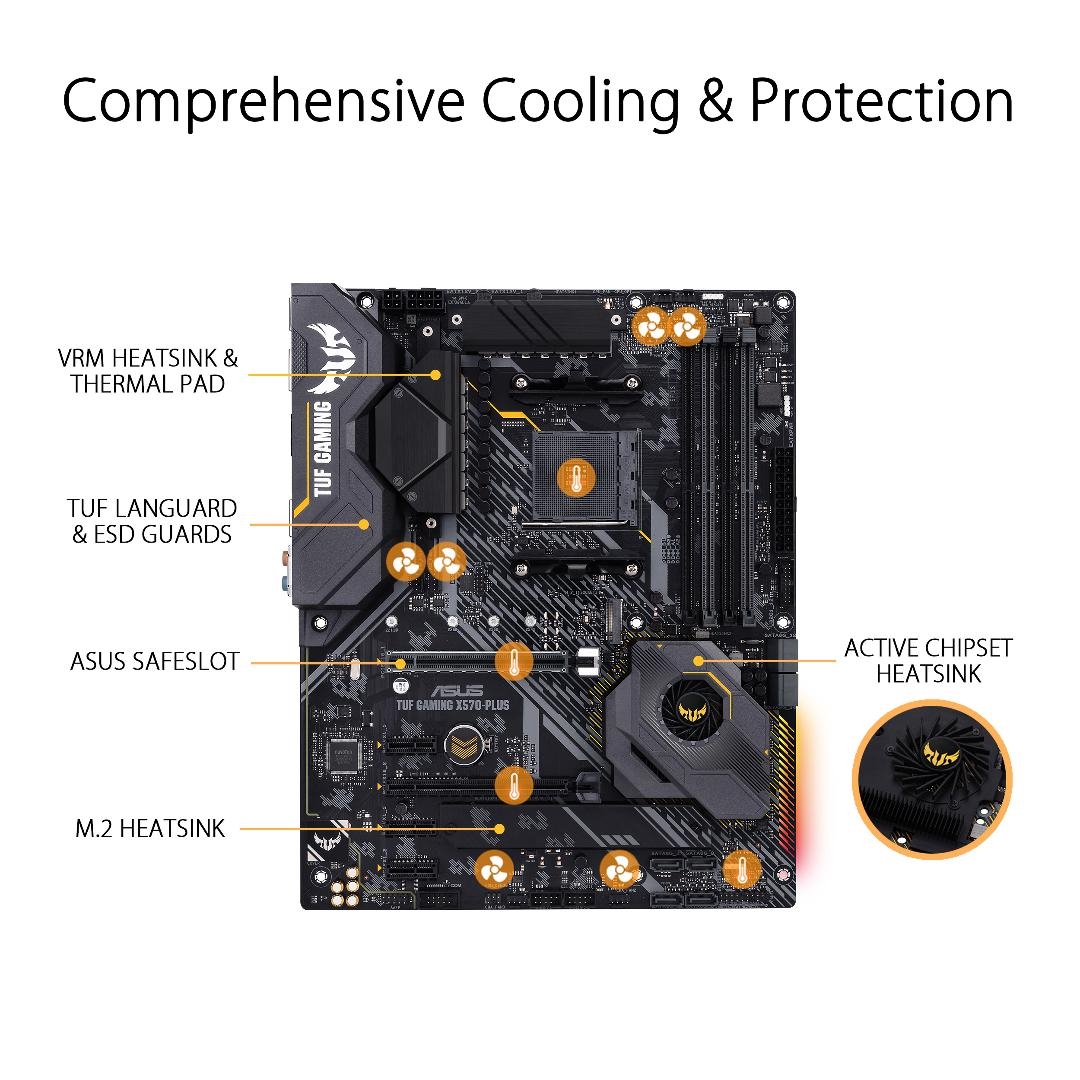

ASUS Quiet Thermal Solution :
- Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
DIY Friendly Design
- Procool
- SafeSlot
- Digi+ VRM
- Highly Durable components
- ESD Guards

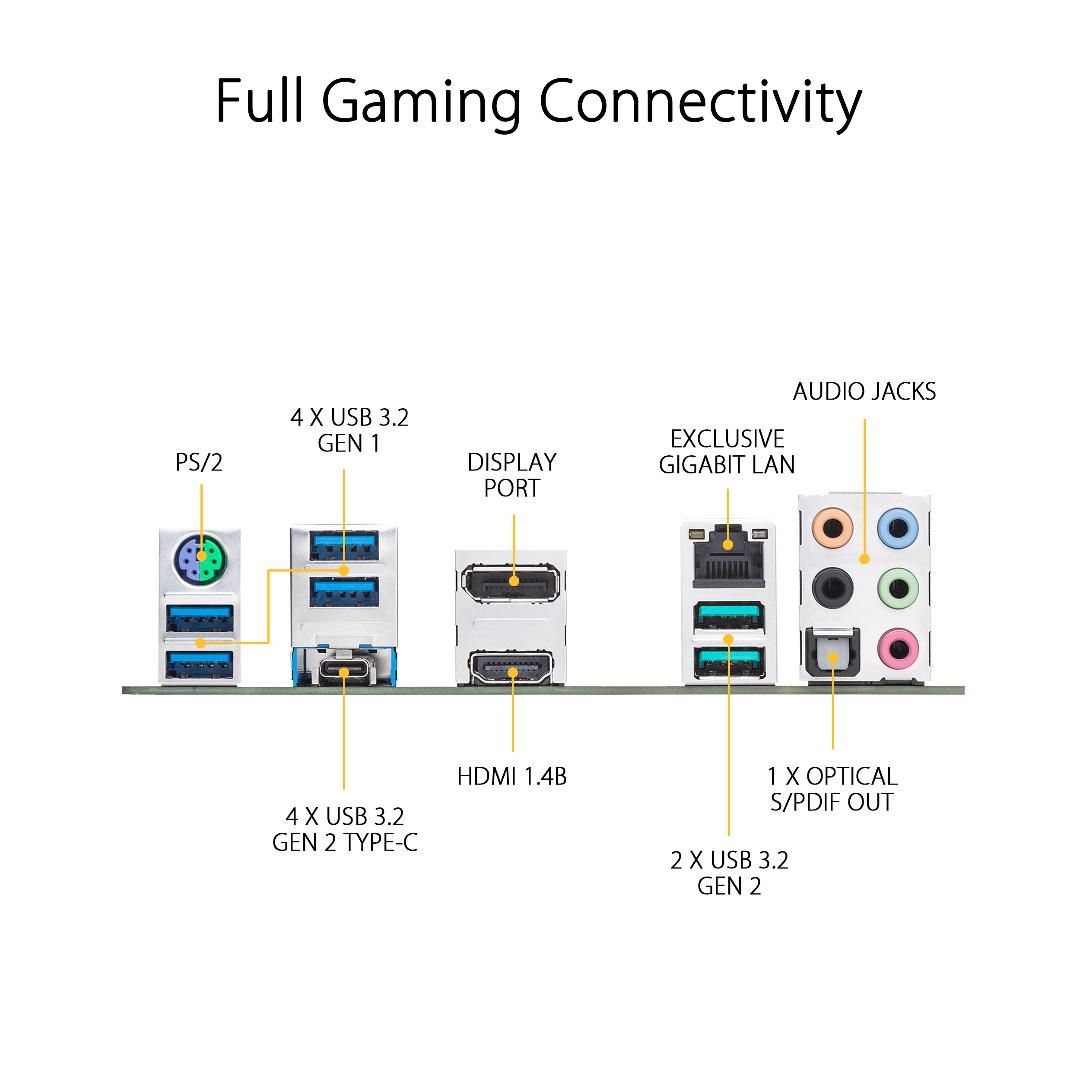

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)

Internal I/O Ports
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode and X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode and X4 PCIE mode)
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Accessories
Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)

BIOS
256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability
WOL by PME, PXE

Operating System
Windows 10 64-bit

Form Factor
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm

Item Dimension (L"xW"xH")
14 x 11 x 3

Weight
4 lbs

Warranty Information
3 Year Warranty
